Micsig ATO1104 Touchscreen Automotive Oscilloscope- In Stock .

Available:

NEW

From £545 excl VAT From £380 excl VAT

Qty:

Description

Currently in stock.

The Micsig ATO1104 automotive oscilloscope is especially made for easy use by mechanics, Roadside Repair Technicians, Car Manufacturers and more for carrying out a wide range of diagnostic tests. Save time with the software on the The Micsig ATO1104 which includes multiple auto diagnostic presets. Store, Record and or Review results.

Have a mobile? You can connect the mobile phone to the network and view real time waveforms, control the oscilloscope, connect to a computer and view saved or recorded waveforms on the oscilloscope or computer.

In addition the automotive oscilloscope can be connected to a computer or even a projector for viewing the information or offering presentations .Read more below for applications and tests.

Pressure Test:

Intake Manifold
Exhaust Tailpipe
In-Cylinder
In-Crankcase

Networks:

CAN
LIN
FLexray
K-line
Additional Serial and Trigger decodes:
UART,I2C, SPI

Ignition Tests:

Primary Ignition
Secondary Ignition
Primary-Secondary Ignition

Sensor Tests

ABS
Accelerator Pedel
Airflow Meter
CamShaft
CrankShaft
Coolant Temperature
Distributor
Fuel Pressure
Knock
Lambda
MAP
Road Speed
Throttle Position

Actuator Tests

Carbon Canister Solenoid Value
Diesel Glow Plugs
EGR Solenoid Value
FuelPlum
Idle Speed Control Value (IAC)
Injector -Petrol
Injector-Diesel
Pressure Regulator
Quantity Control Value
Throttle Servomotor
Variable Speed Cooling Fan
Variable Value Timing

Charging/Start Circuits:

12V Charging
24V Charging
Alternator AC Ripple
Ford Smart Alternator
12V Start
24V Start
Cranking Current

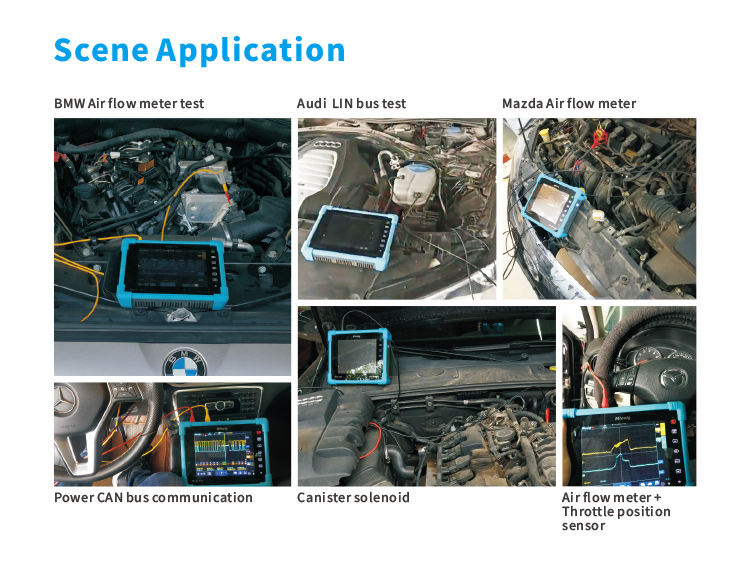

Micsig Automotive Oscilloscope

Specifications

Model Number

Micsig ATO1102

Micsig ATO1104

Bandwith	100MHz	100MHz
Analog Channel	2	4
Real time sample rate	1GSa/S（single channel）	1GSa/S（single channel）
Memory depth	28Mpts（single channel）	28Mpts（single channel）
Support test	Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (including CAN, LIN, Flexray, K, etc.), pressure test (cylinder pressure, intake andexhaust pressure, fuel pressure, etc.)	Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (including CAN, LIN, Flexray, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, etc.)
Bandwith limitation	Full bandwidth, low pass	Full bandwidth, low pass
I/O port	Wifi、LAN、HDMI、USB Host、USB Device、GND、DC Power	Wifi、LAN、HDMI、USB Host、USB Device、GND、DC Power
Display	8" Industry TFT LCD touchable capacitive screen, resolution: 800600 pixels, 1410 grids	8" Industry TFT LCD touchable capacitive screen, resolution: 800600 pixels, 1410 grids
Dimension	25020055mm	25020055mm

Accessories:

Standard	P130A 200MHZ X 10 Passive Probes: 2pcs for 2 /4 channel 10X Input capacitance: 14.5pF-17.5pF, 10X Input Voltage: ＜600V DC + Peak AC
Standard	1unit Power adaptor input 100~240V，50~60Hz，1A；output DC12V/4A，
Standard	Power cord X 1(country of origin determines specific type)
Standard	BNC caps, 3pcs for 2 channel, 5 pcs for 4 channel
Standard	alligator clips, 2pcs for 2 channel, 4 pcs for 4 channel
Standard	Flexible needle, 2pcs for 2 channel, 4 pcs for 4 channel
Standard	BNC banana lines, 2pcs for 2 channel, 4 pcs for 4 channel
Standard	User instructions
Standard	Certification of clibration
Standard	Packing list card
Standard	7.4V, 7500mAh detachable battery
Standard	1 X Screen protector film, 1 X Carry strap belt
Optional	Oscilloscope Handbag：Black Nylon

Description
Specification
Documents
Videos

Currently in stock.

In addition the automotive oscilloscope can be connected to a computer or even a projector for viewing the information or offering presentations .Read more below for applications and tests.

Pressure Test:

Intake Manifold
Exhaust Tailpipe
In-Cylinder
In-Crankcase

Networks:

CAN
LIN
FLexray
K-line
Additional Serial and Trigger decodes:
UART,I2C, SPI

Ignition Tests:

Primary Ignition
Secondary Ignition
Primary-Secondary Ignition

Sensor Tests

ABS
Accelerator Pedel
Airflow Meter
CamShaft
CrankShaft
Coolant Temperature
Distributor
Fuel Pressure
Knock
Lambda
MAP
Road Speed
Throttle Position

Actuator Tests

Carbon Canister Solenoid Value
Diesel Glow Plugs
EGR Solenoid Value
FuelPlum
Idle Speed Control Value (IAC)
Injector -Petrol
Injector-Diesel
Pressure Regulator
Quantity Control Value
Throttle Servomotor
Variable Speed Cooling Fan
Variable Value Timing

Charging/Start Circuits:

12V Charging
24V Charging
Alternator AC Ripple
Ford Smart Alternator
12V Start
24V Start
Cranking Current

Micsig Automotive Oscilloscope

Model Number

Micsig ATO1102

Micsig ATO1104

Bandwith	100MHz	100MHz
Analog Channel	2	4
Real time sample rate	1GSa/S（single channel）	1GSa/S（single channel）
Memory depth	28Mpts（single channel）	28Mpts（single channel）
Support test	Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (including CAN, LIN, Flexray, K, etc.), pressure test (cylinder pressure, intake andexhaust pressure, fuel pressure, etc.)	Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (including CAN, LIN, Flexray, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, etc.)
Bandwith limitation	Full bandwidth, low pass	Full bandwidth, low pass
I/O port	Wifi、LAN、HDMI、USB Host、USB Device、GND、DC Power	Wifi、LAN、HDMI、USB Host、USB Device、GND、DC Power
Display	8" Industry TFT LCD touchable capacitive screen, resolution: 800600 pixels, 1410 grids	8" Industry TFT LCD touchable capacitive screen, resolution: 800600 pixels, 1410 grids
Dimension	25020055mm	25020055mm

Accessories:

Standard	P130A 200MHZ X 10 Passive Probes: 2pcs for 2 /4 channel 10X Input capacitance: 14.5pF-17.5pF, 10X Input Voltage: ＜600V DC + Peak AC
Standard	1unit Power adaptor input 100~240V，50~60Hz，1A；output DC12V/4A，
Standard	Power cord X 1(country of origin determines specific type)
Standard	BNC caps, 3pcs for 2 channel, 5 pcs for 4 channel
Standard	alligator clips, 2pcs for 2 channel, 4 pcs for 4 channel
Standard	Flexible needle, 2pcs for 2 channel, 4 pcs for 4 channel
Standard	BNC banana lines, 2pcs for 2 channel, 4 pcs for 4 channel
Standard	User instructions
Standard	Certification of clibration
Standard	Packing list card
Standard	7.4V, 7500mAh detachable battery
Standard	1 X Screen protector film, 1 X Carry strap belt
Optional	Oscilloscope Handbag：Black Nylon

Micsig ATO 1104 .Micsig ATO1000 Series Automotive Oscilloscope
